VFD installation requirements are a crucial undertaking. They demand careful attention to detail to guarantee the safety, effectiveness, and peak performance of motor-driven applications. The following instructions will help you ensure a successful installation, whether you are an experienced technician or installing a VFD for the first time.
What Is a Variable Frequency Drive (VFD)?
A Variable Frequency Drive (VFD), also called a motor controller, is responsible for regulating the frequency and voltage supplied to an electric motor. Variable speed drives are also known as adjustable speed drives, AC drives, micro drives, and inverters.
Motor speed (RPM) is directly proportional to the supply frequency (Hz). In other words, when the frequency increases, the RPM also increases. If the application does not require the motor to run at full speed, a VFD can reduce the frequency and voltage to match the load requirements. In the same way, it can easily increase or decrease motor speed to meet changing application demands.

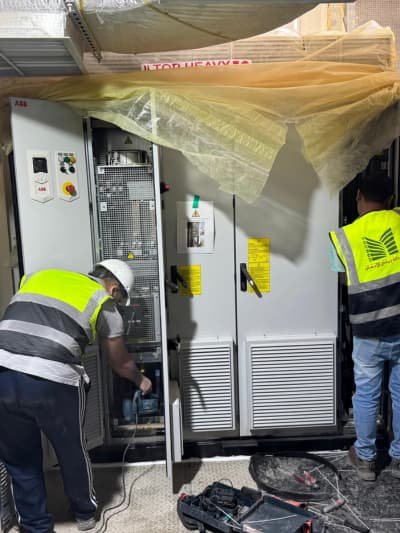

Key VFD installation requirements
Here are the key VFD installation requirements you should consider, aligned with Vision 2030 goals:
1- Motor Interoperability:
Verify that the VFD and the motor it controls are fully compatible. As part of the VFD installation requirements, confirm the motor type (synchronous or induction) and ensure voltage, current, and power ratings match correctly.
2- Application prerequisites:
Identify the specific needs of your application. Consider factors such as torque demand, operating temperature, humidity, dust levels, and the required accuracy of speed control.
3- Power Supply Input:
Check that the VFD matches your facility’s power supply. Confirm the correct voltage level and whether the system is single-phase or three-phase.
4- Features of Control:
Choose a VFD that provides the right control methods, communication protocols (such as Modbus, Ether Net/IP), and I/O specifications to meet your operational and integration needs.
5-Efficiency of Energy:
Select VFDs with high efficiency ratings and energy optimization features. These cut long-term operating expenses in addition to consuming less energy.
6- Features for Safety and Protection:
Ensure the VFD includes essential safety functions such as thermal control, overload protection, and compliance with industry standards like UL and CE.
7-Total cost of ownership and Budget
Although initial expenditures are crucial, take into account the entire cost of ownership, which includes upkeep, energy use, and possible downtime.
Read About: How to select a VFD for a motor

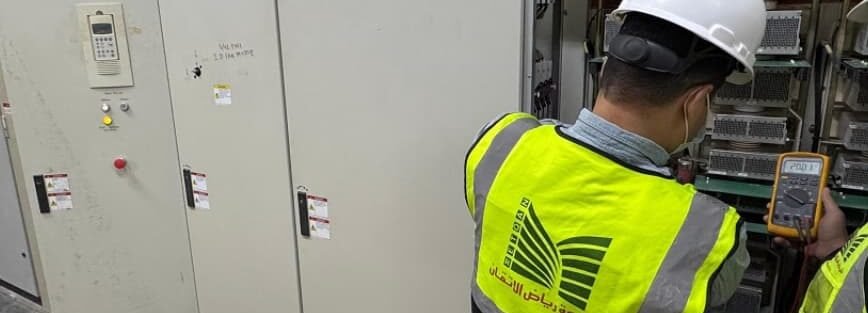

Wiring a VFD: Step-by-Step Guide
Steps of VFD installation requirements, such as the following:
1-Verify Sizing and Motor Data:
Make sure everything is correctly sized and included. Check the motor’s nameplate to confirm full-load amps and voltage (230V or 460V). Then see if the motor’s amp draw matches the VFD rating.
2-Check and Install the Circuit Breaker
Locate the breaker panel and remove the cover along with the dead front. Install a three-pole circuit breaker rated for the correct amps and voltage. Always switch off the power before working inside the panel. If that isn’t possible, use proper protective equipment such as leather gloves, safety glasses, and arc-flash gear.
3-Run Power Cables to the VFD
Verify that your power line is rated for the full load amps, which go from:
- 14 gauge to 15 amps
- 12 gauge to 20 amps
- 10 gauge to 30 amps
- 8 gauge to 40 amps
- 6 gauge to 50 amps
- 4 gauge to 70 amps
- 2 gauge to 100 amps and so on
Your ground wire can be 10 if your power wires are #6 through 2. Refer to the table for
the appropriate ground wire size for power cables bigger than 2. Choose the right wiring technique when figuring up your wire raceway. EMT Conduit, Rigid Conduit, Flexible Metal Conduit (Flex), Metal Clad Cable (MC), NMB Cable (Romex), and so on are some of the alternatives that may be available.
4-Run Cables from VFD to Motor
Use the same gauge wires as the breaker connection, place them in the appropriate raceway, and terminate inside the motor’s conduit box.5-Adjust Motor Wiring
5-Adjust Motor Wiring
Refer to the motor’s wiring schematic to select the correct connection method. Most three-phase motors are dual-voltage and can operate at either 480/460V or 240/208V. Configure the wiring according to the supplied voltage. Check that all wire nuts are tight by pulling each connection—if any wire comes loose, redo the splice. Finally, secure the motor’s conduit box cover.
6-Connect Cables to the VFD
Terminate the motor load cables at terminals U, V, and W. Line cables from the circuit breaker go to R/L1, S/L2, and T/L3. You may use crimp terminals for secure connections, or form a small hook with the stripped wire and tighten it under the screw. Ground wires must always be attached to the green ground terminal.
7-Connect Cables to the Circuit Breaker
Secure the three power cables to the breaker, connect the ground wire to the bus bar, and reinstall the panel cover with the dead front.
8-Start the System
Switch on the circuit breaker, configure the VFD parameters as needed, and start the motor using the keypad or external start/stop controls. From here, you can fine-tune the motor speed to match your application requirements.
Read about: What causes a VFD to trip

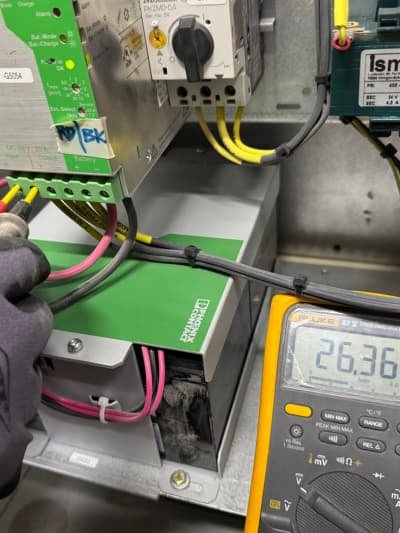

How to Program a VFD Drive
To program your variable frequency drive installation:
1. Enter the data for your motor in the VFD’s interface
You can find this information on your motor’s nameplate. Enter the speed, voltage, frequency (Hz), horsepower (HP), amperage (A), and overload protection exactly as shown.
This allows the VFD to understand the correct V/Hz ratio during operation. Without entering these details, the drive won’t know how to apply its default performance settings to your system.
2.Verify the direction in which your motor is rotating
When the motor starts for the first time, it may be hard to know in advance which way it will spin. Always test the rotation to confirm it’s correct. If it’s not, you can adjust the VFD parameters to reverse the direction. A simpler method is to swap any two of the three output lines going to the motor. Avoid changing all three at once, as this won’t affect the direction.
3-Enter the fundamental settings for motor operation
The following are some of the primary settings you must establish with your drive:
- Minimum/Maximum Speed: Set the lower and upper speed limits to optimize motor performance, protect equipment, and reduce unnecessary wear.
- The desired set speed: Also called the speed reference. The more accurate it is, the better the VFD can match system demand. Always make sure the set speed remains within the motor’s safe operating range.
- Times of acceleration and deceleration: Your VFD regulates how long it takes the motor
to go from zero Hz to its maximum output frequency and, often, back to zero. - Control method: The final step in programming your VFD is to set up its controls (Step 5 in this tutorial). This needs to be done early, as control settings directly affect how the VFD applies to your system.
4-Examine the use of your VFD
Things may get a bit more tailored to your drive at this point. For both constant-torque and variable-torque applications, many VFD installation requirements have dual ratings. The overload qualities needed for the application are usually defined via parameters.
- Pumps and Fans: For fan and pump applications, a longer acceleration and deceleration period is desirable. A catch-on-fly and coast-to-stop capability would likely be included as well to prevent overvoltage and overcurrent issues.
- Compressors: You usually desire a faster acceleration when using compressors. Since compressors frequently start empty, you want the motor to start as fast as the manufacturer advises for safety.
- Cranes, elevators, and conveyors: You will probably have to deal with braking and regenerative power problems with applications like these, so if you are unfamiliar with the programming, it is advisable to consult an expert.
5-Configure the controls:
Many VFDs are controlled by an external source rather than the keypad itself. Most drives come with digital and analog input/output (I/O) that are used for the most common external controllers.
Common VFD Installation Mistakes to Avoid
1-Overloading and improper sizing:
Before buying a VFD, always assess your motor. Full load amps may differ if the motor was changed, so size the VFD based on amperage, not horsepower. Also, check that the VFD capacity meets your motor’s needs and review the physical dimensions, since newer VFDs may differ in size.
2-Choosing not to purchase companion gadgets
When buying a new VFD, it’s common to discuss surges, dV/dt, and harmonics with the provider, like R-aletqan. But many skip these talks if a VFD was already installed. While upgrading, check if you need harmonic filters, reactors, SPDs, or other devices your old system lacked.
3-The VFD was installed incorrectly
Old connections may be worn out, so always check wires, conduits, and lugs for damage. For outdoor drives, weather can speed up deterioration, so proper grounding and protection are essential. Also, leave enough clearance around the panel for technician access and cooling, following both code and manufacturer guidelines.
4-Poor programming
Many VFDs are left running on their initial setup for years. When installing a new drive, always review and optimize the settings. Verify motor data, enable features like catch-a-spinning-load and coast-to-stop, and check acceleration/deceleration times. Also ensure the VFD is ready for future needs, such as integration with a building management system (BMS).
5-Not taking advantage of the opportunity to improve
Instead of replacing an old VFD with the exact same model, consider upgrading to a newer series. Older drives are often discontinued, harder to source, and more expensive, while updated models are widely available, better supported, and usually more cost-effective in the long run.
6-Not providing on-site staff with training
A new VFD may not operate exactly like the old one, even if the interface changes are small. Train your staff to adjust common parameters, handle basic troubleshooting, and perform proper cleaning and preventive maintenance to avoid downtime.
Post-Installation Maintenance Tips
Best practices to keep your VFD running efficiently:
- Frequent upkeep: Regular maintenance and preventive checks extend VFD life and keep performance stable.
- Power quality monitoring: Track for surges, harmonics, or fluctuations to prevent unexpected damage.
- Proper installation: A well-installed VFD reduces downtime and costly repairs—use qualified contractors.
- Diagnostic software updates: Keep the VFD software up to date to boost efficiency and minimize downtime.
- VFD-specific enclosure: Protects against overheating and overload.
- Adequate ventilation: Ensure free airflow around the enclosure to aid cooling.
- Cooling support: Use fans, blowers, or AC units in harsh environments to maintain safe temperatures.
- Secure connections: Check all connections routinely; loose wiring creates excess heat and risks failure
Need Help with VFD Installation?
If you say yes, R-aletqan is the solution. Our staff has years of expertise managing intricate motor and VFD installations in various commercial environments. We offer all-inclusive electrical solutions, including:
● Installation of motors for a range of uses
● Installation and integration of VFD
● Diagnosis and troubleshooting services
● Older system upgrades and retrofits
● Continuous upkeep and assistance
Safety and compliance are our top priorities, and our solutions are tailored to your facility’s needs for efficiency and sustainability.
FAQ
How to check VFD rating?
Examine the nameplate of the VFD as well as the motor to which it is attached.
What is the maximum voltage for a VFD?
The maximum voltage for a VFD ranges from low voltage (up to 600V) to medium voltage (up to 6,900V).
Is VFD used in AC or DC?
The only application for variable frequency drives (VFDs) is with AC motors.
Does VFD need to be grounded?
A variable frequency drive (VFD) must be grounded.
